The Evolution of Waterproofing Membranes
From traditional bitumen to advanced synthetic membranes
Moving away from old school asphalt solutions toward modern polymer membranes represents a major breakthrough for protecting structures against water damage. Back in the day, most waterproofing work depended on bitumen products, but these tended to crack easily and break down when exposed to temperature changes, meaning buildings needed constant repairs over time. Things started changing around the 1990s when new materials such as PVC and TPO hit the market. These polymers could stretch much more than bitumen did – roughly three to four times as much actually (around 15 to 25 percent compared to just 5 to 8 percent for bitumen). Plus they held up better against sharp objects without tearing. What makes these polymer systems so good is that they fix many problems we had with older materials. They stay stable chemically even under harsh conditions and generally cause fewer environmental issues during production and disposal compared to what we used before.
Key milestones in membrane technology development
Four major innovations have transformed the industry:
- Elastomeric membranes (1980s): Enabled seamless application on complex geometries
- Cross-laminated polymers (2000s): Increased tear strength by 60% without compromising flexibility
- Hybrid liquid-applied systems (2010s): Combined spray efficiency with high-performance membrane characteristics
- UV-stable formulations (2020s): Extended service life beyond 30 years, even in extreme climates
The shift from passive barriers to active, adaptive protection systems
Modern membranes now integrate smart technologies that respond to environmental stressors. A 2024 construction technology report highlights systems with microencapsulated healing agents that automatically seal cracks during temperature shifts. These dynamic membranes reduce maintenance costs by 40% compared to static barriers and accommodate structural movements up to 300% strain capacity.
Core Materials and Performance Properties of Modern Waterproofing Membranes
Modern waterproofing membranes leverage advanced materials science and rigorous testing to meet commercial construction demands. Their composition directly influences critical performance factors such as flexibility, adhesion, and resilience, making material selection essential for system reliability.
Polymer-based vs. Liquid-applied Membranes: A Comparative Analysis for B2B Applications

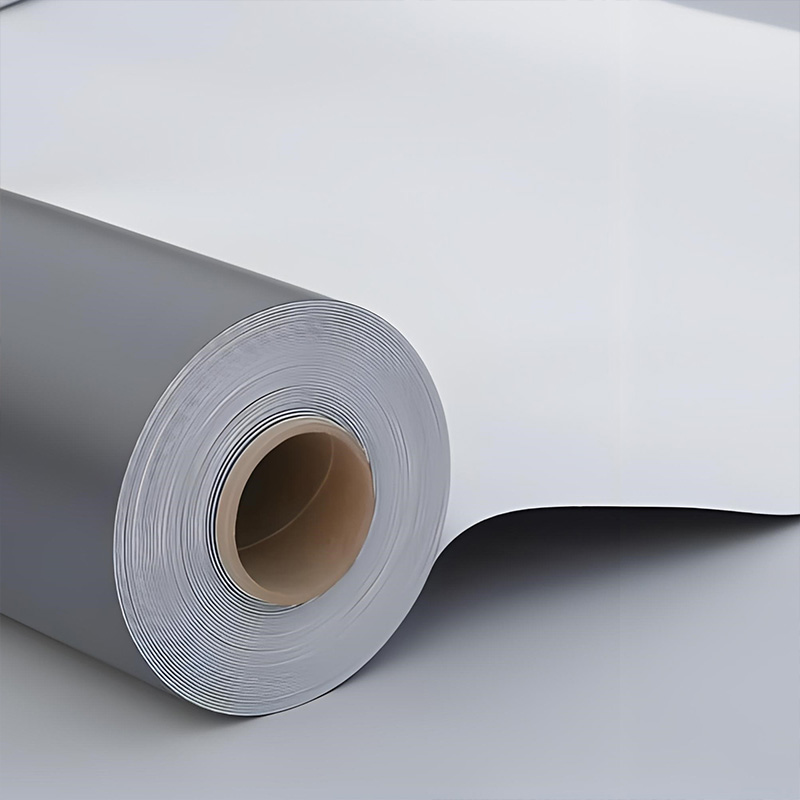

Polymer-based membranes (PVC, TPO, EPDM) are ideal for large-scale roofing due to consistent mechanical properties, with tensile strengths reaching 400 psi and puncture resistance exceeding 150 lbs/inch. Liquid-applied membranes, though slightly less robust (200–300 psi tensile strength), offer seamless coverage on intricate surfaces—making them preferred for foundations and underground structures.
| Property | Polymer-based Membranes | Liquid-applied Membranes |
|---|---|---|
| Installation Speed | 500–800 sq.ft/hr | 300–500 sq.ft/hr |
| Crack Bridging Capacity | ≤ 1/8" | ≤ 1/4" |
| VOC Content | 0–50 g/L | 50–250 g/L |
Durability and Environmental Resistance of Synthetic Membranes
Accelerated aging tests show modern synthetic membranes retain 95% of their waterproofing effectiveness after 25 years under cyclic thermal stress (-40°F to 180°F) and UV exposure simulating 150 MJ/m²/year. Chlorinated polyethylene (CPE) variants exhibit exceptional corrosion resistance, enduring over 2,000 hours of salt spray testing—critical for coastal infrastructure.
Advanced Properties Enhancing Long-Term Performance and Reliability
Additives like graphene oxide (0.5–1.5% by weight) increase tear resistance by 40% without sacrificing flexibility. Photocatalytic titanium dioxide coatings break down organic pollutants, preserving over 90% water repellency throughout a decade of urban exposure.
Balancing Flexibility and Tensile Strength: Key Trade-offs in Membrane Selection
High-elongation membranes (300–400% strain) typically have 15–20% lower tensile strength than stiffer options—a trade-off beneficial for expansion joints. However, new polymer blends achieve balanced performance (200% elongation at 350 psi tensile strength), meeting both movement accommodation and load-bearing needs in plaza decks.
Smart Membranes and Nanotechnology: The Next Generation of Waterproofing
Integration of nanotechnology in self-healing waterproof membranes
Membranes made with nanotechnology can actually fix small damages on their own. When manufacturers mix stuff like graphene oxide or nanoclay into plastic bases, they create membranes that close tiny cracks (about 0.2 mm wide) through capillary forces whenever there's moisture around. The folks at Frost & Sullivan looked into this back in 2025 and found something pretty impressive: these special membranes kept working at 97% waterproof efficiency even after going through 1,200 temperature changes. That's three times better than what we normally see from regular materials. This makes them really good for concrete buildings where shrinkage often causes cracks over time.
Responsive smart materials that detect and repair micro-damage autonomously
The latest membrane technology features conductive polymers mixed with shape memory alloys that respond when something happens in their environment. When there's a change in pH levels caused by water getting through, the material actually changes shape from inside out to seal up any holes within about three days give or take. According to computer models run by researchers, this kind of system can cut down on leaks causing damage by almost nine out of ten cases after spending a decade submerged in saltwater conditions. Certain types even apply special water repelling substances right where damage occurs, keeping surfaces so slick that water just rolls off them at angles greater than 150 degrees. This means no sticking around for moisture anymore.
Case Study: Nanosilica-enhanced membranes in high-rise foundation projects
A high-rise development in Singapore reduced basement leaks by 94% using nanosilica-infused membranes. The 2.3 nm silica particles filled capillary pores in concrete while chemically bonding with the membrane layer. This dual-action system withstood groundwater pressures over 35 kPa and cut long-term maintenance costs by $18/m² versus conventional methods.
Innovations in Installation: Enhancing Efficiency and Bonding Performance
Pre-applied bonded waterproofing membranes and their structural advantages
Pre-applied bonded membranes are installed before concrete pouring, integrating directly with the substrate and eliminating post-curing delays. They form a molecular-level bond that resists lateral water migration. Industry data shows these systems reduce joint failure risks by 63% compared to post-applied sheets, particularly in below-grade foundations facing hydrostatic pressure.
Mechanical vs. chemical bonding: Optimizing adhesion in diverse construction environments
When deciding between mechanical interlocks with textured surfaces versus chemical adhesion methods using primers or reactive materials, factors like what surface we're dealing with and local weather conditions really matter. Mechanical bonding works great in areas where freezing and thawing happens regularly because it can handle those volume fluctuations without cracking. Chemical bonds tend to hold up better in harsh chemical environments though, which is why they're commonly seen in places like wastewater treatment plants. These days many manufacturers are turning to hybrid approaches that blend both techniques together. The result? Some pretty impressive performance metrics too. We've seen peel strengths exceeding 8 Newtons per square millimeter even when temperatures swing all the way from minus 30 degrees Celsius right up to plus 80 degrees Celsius.
Emerging application technologies streamlining membrane installation
Automated dispensing systems and robotics enhance precision and consistency in membrane application. For instance, automated bonding platforms achieve 0.2 mm accuracy in sealant placement—essential for complex green roof assemblies. Integrated with BIM models, these systems dynamically adjust material thickness, reducing waste by 22% while ensuring uniform coverage on irregular surfaces.
Frequently Asked Questions (FAQ)
What are waterproofing membranes?
Waterproofing membranes are protective layers that prevent water from infiltrating buildings and structures. They are used in various applications, including roofing, foundations, and underground structures.
How do synthetic waterproofing membranes differ from traditional materials?
Synthetic membranes, such as those made from PVC and TPO, offer greater flexibility, chemical stability, and environmental friendliness compared to traditional bitumen products. They also provide better resistance to temperature changes and mechanical damage.
What advancements have been made in waterproofing membrane technology?
Recent advancements include the development of smart membranes with self-healing properties, integration of nanotechnology, and the use of environmentally friendly materials. These innovations improve durability, reduce maintenance costs, and enhance performance in various environmental conditions.
How do mechanical and chemical bonding methods differ in membrane installation?
Mechanical bonding relies on interlocking textures or physical anchoring, while chemical bonding involves adhesives or reactive primers. The method chosen depends on the specific environmental conditions and surface types involved in the installation.
